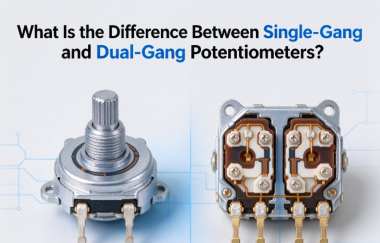

What Is the Difference Between Single-Gang and Dual-Gang Potentiometers?
In the electronic components industry, a potentiometer is a common adjustable resistor used in electronic circuits. It is widely applied in audio equipment, power supply adjustment, instrumentation, and industrial control systems. Based on the number of resistive elements, potentiometers can be classified into single-gang and dual-gang potentiometers. The main differences lie in their internal structures, adjustment methods, and applications. Understanding these differences helps engineers select suitable components according to circuit design, installation space, and control requirements.
Catalog
I. What Are Single-Gang and Dual-Gang Potentiometers?
II. Differences Between Single-Gang and Dual-Gang Potentiometers
III. Advantages and Disadvantages of Single-Gang and Dual-Gang Potentiometers
IV. How to Choose Between Single-Gang and Dual-Gang Potentiometers
I. What Are Single-Gang and Dual-Gang Potentiometers?
A single-gang potentiometer contains one adjustable resistive element. It typically uses a rotary shaft or sliding mechanism to change the position of the wiper, thereby adjusting the resistance or voltage divider output. Depending on how it is connected in a circuit, a single-gang potentiometer can be used for volume control, power supply voltage adjustment, sensor signal adjustment, and other applications.
A dual-gang potentiometer integrates two adjustable resistive elements within the same housing. These elements typically share a common shaft, allowing them to be adjusted simultaneously through a single operation. Common applications include controlling the left and right audio channels of stereo systems and adjusting two circuit parameters simultaneously. It is important to note that the two resistive elements of a conventional dual-gang potentiometer are generally controlled by the same shaft and cannot be adjusted independently.
II. Differences Between Single-Gang and Dual-Gang Potentiometers
The main differences between single-gang and dual-gang potentiometers lie in the number of internal resistive elements and how they control circuits.
1. Different Internal Structures. A single-gang potentiometer contains one adjustable resistive element, while a dual-gang potentiometer integrates two resistive elements within the same housing. Common dual-gang potentiometers use a shared shaft, allowing both elements to be adjusted simultaneously with a single rotation.
2. Different Control Functions. A single-gang potentiometer has one adjustable resistive element that can be used to adjust resistance or voltage divider output, depending on the circuit configuration. A dual-gang potentiometer can adjust two circuit parameters simultaneously through a single operation. For example, in a stereo audio system, a dual-gang potentiometer is commonly used to control the volume of the left and right channels at the same time.
3. Different Applications. Single-gang potentiometers are suitable for applications such as general volume control, adjustable power supplies, sensor signal adjustment, and control circuits. Dual-gang potentiometers are more suitable for equipment that requires simultaneous adjustment of two channels, including stereo amplifiers, audio mixers, and certain dual-channel control circuits.
4. Different Selection Requirements. When selecting a single-gang potentiometer, key parameters include nominal resistance, resistance taper, rated power, and mechanical dimensions. In addition to these basic requirements, a dual-gang potentiometer requires attention to resistance matching and tracking error between its two resistive elements. In audio equipment, significant differences in their adjustment characteristics may cause an imbalance in the volume levels of the left and right channels.
III. Advantages and Disadvantages of Single-Gang and Dual-Gang Potentiometers
1. Advantages and Disadvantages of Single-Gang Potentiometers
The main advantages of single-gang potentiometers are their relatively simple structure, generally lower cost, compact size, and ease of circuit integration and installation. When a device needs to adjust only one circuit parameter, a single-gang potentiometer is usually an economical and practical choice.
However, a single-gang potentiometer has only one adjustable resistive element. If a circuit requires simultaneous adjustment of two channels, two single-gang potentiometers are generally needed. Additional considerations may include synchronized operation, installation space, and adjustment consistency.
2. Advantages and Disadvantages of Dual-Gang Potentiometers
The main advantage of a dual-gang potentiometer is its ability to adjust two resistive elements simultaneously through a single shaft. This simplifies dual-channel control and reduces the panel space required compared with installing two separate potentiometers. In stereo audio systems, it allows the volume of the left and right channels to change together as the knob is turned.
However, dual-gang potentiometers have relatively more complex internal structures and generally cost more than single-gang potentiometers with comparable specifications. In addition, resistance differences and tracking errors may exist between the two resistive elements. Therefore, their electrical characteristics should not be assumed to be perfectly identical at every adjustment position. For applications requiring independent control of two channels, a conventional common-shaft dual-gang potentiometer is generally unsuitable, and an appropriate independent adjustment solution should be selected instead.
IV. How to Choose Between Single-Gang and Dual-Gang Potentiometers
When selecting a potentiometer, first determine whether the circuit needs to adjust one parameter or two. If only a single circuit's resistance or voltage divider output needs to be adjusted, a single-gang potentiometer is usually sufficient. If two channels need to be adjusted simultaneously using the same knob, a dual-gang potentiometer is generally more suitable.
Other selection criteria include nominal resistance, resistance taper, rated power, operating voltage, shaft type, mounting dimensions, and operating environment. For audio applications, particular attention should be paid to the tracking error of a dual-gang potentiometer to help minimize volume imbalance between the left and right channels. Final component selection should be based on the manufacturer's datasheet and rated specifications.
V. Conclusion
The main differences between single-gang and dual-gang potentiometers lie in the number of internal adjustable resistive elements and their adjustment methods. Single-gang potentiometers feature a simple structure and generally lower cost, making them suitable for single-channel adjustment. Dual-gang potentiometers can adjust two resistive elements simultaneously through a shared shaft, making them suitable for stereo volume control and other dual-channel applications. When selecting a potentiometer, consider circuit requirements, accuracy, installation space, and cost to ensure that the component meets the electrical performance and operational requirements of the device.
