What Are Resistance Temperature Detectors?

RTD (Resistance Temperature Detectors) is a common temperature sensor in the electronic components industry. Known for its high precision, stability, and reliability, RTD is widely used across various industries such as industrial, medical, and food processing. This article will provide an in-depth exploration of RTD, including an overview, working principles, element types, characteristics and advantages, as well as its applications in different fields.

Catalog

I. What are Resistance Temperature Detectors?

II. Working Principles

III. Element Types

IV. Characteristics and Advantages

V. Applications

VI. Conclusion

I. What are Resistance Temperature Detectors?

Resistance thermometers, also known as resistance temperature detectors (RTDs), are sensors used to measure temperature. Many RTD elements consist of a length of fine wire wrapped around a heat-resistant ceramic or glass core, although other constructions are also possible. The wire is made from pure materials such as platinum (Pt), nickel (Ni), or copper (Cu). These materials exhibit an accurate resistance/temperature relationship, which allows them to indicate temperature. As RTD elements are fragile, they are often encased in protective probes.

RTDs are known for their high accuracy and repeatability, making them suitable replacements for thermocouples in industrial applications below 600°C.

II. Working Principles

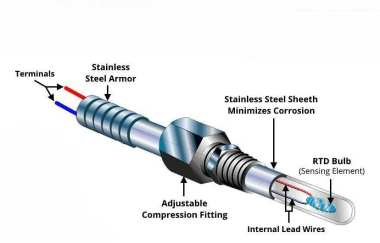

An RTD consists of a resistance element and insulated platinum wires. Sometimes RTDs have three or even four wires to increase accuracy and eliminate connection lead resistance errors. The resistance element is made of platinum due to its long-term stability, linear relationship between temperature and resistance, broad temperature range, and chemical inertness. When the temperature of the metal increases, the resistance to the flow of electricity increases as well. An electrical current is passed through the sensor, and the resistance element measures the resistance of the current passing through it. As the temperature of the resistance element rises, electrical resistance also increases. The typical response time for an RTD ranges between 0.5 and 5 seconds, making them suitable for a variety of applications.

III. Element Types

RTD sensors mainly come in three types:

· Thin-Film RTD: This type involves depositing a thin layer of platinum or other materials onto a substrate. Thin-film RTDs are cost-effective and offer fast response times, but are less durable compared to other types.

· Wire-Wound RTD: Composed of a fine platinum wire wound into a coil and encased in a protective sheath, wire-wound RTDs offer high accuracy and long-term stability, making them ideal for extended measurements.

· Coiled RTD: Coiled RTDs are similar to wire-wound types, using long platinum wires in a tightly coiled configuration for compactness. These are often used in space-restricted applications.

Additionally, in specialized scenarios, RTDs can utilize other unique materials and shapes. For instance, carbon resistors are used for measurements in ultra-low temperature conditions (-273°C to -173°C).

IV. Characteristics and Advantages

· High Accuracy: RTDs offer very high measurement accuracy with minimal error margins.

· Long-Term Stability: RTDs maintain stable performance over prolonged use and are less susceptible to time and environmental influences.

· Wide Temperature Range: RTDs can measure temperatures across a broad range, typically from -200°C to 600°C.

· Linear Response: Platinum RTDs exhibit a linear relationship between resistance and temperature over a wide temperature range.

· Durability: Typically constructed from high-quality materials, RTDs are durable and suitable for use in harsh environments.

V. Applications

RTDs find wide-ranging applications in the following areas:

· Industrial Automation: RTDs monitor and control temperature in production processes such as refining, chemical processing, and pharmaceuticals.

· Medical Devices: RTDs are used in medical devices like thermometers for precise measurement of patient temperature.

· Food Processing: RTDs control and monitor temperatures in food processing, ensuring food safety and quality.

· Aerospace: RTDs measure the temperature of engines and airframes in aircraft and spacecraft.

· Research Laboratories: RTDs enable high-precision temperature measurement and control of experimental conditions.

· HVAC: RTDs are used in heating, ventilation, and air conditioning systems to control and monitor environmental temperatures.

· Automotive Industry: RTDs monitor the temperatures of engines, transmissions, and other automotive components.

VI. Conclusion

Due to its high accuracy, stability, and durability, RTD (Resistance Temperature Detectors) has become the preferred choice for temperature measurement across various industries. By deepening our understanding of RTD working principles, element types, characteristics, advantages, and applications, we can better utilize this essential technology. This not only helps improve production efficiency and product quality but also provides reliable temperature data for research experiments, medical equipment, and daily life, fostering technological progress and innovation across industries.
