BTA08-600BRG: Features, Specs & More
Welcome to our comprehensive guide on the STMicroelectronics BTA08-600BRG TRIAC. If you're delving into the realm of electronics or seeking to enhance your knowledge on TRIACs, you've come to the right place. In this comprehensive article, we'll delve into the intricacies of the BTA08-600BRG, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
BTA08-600BRG's Overview

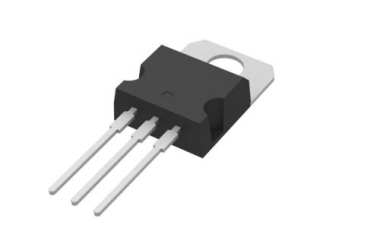

At its core, the BTA08-600BRG is a TRIAC, a vital semiconductor device used in power control applications. This TRIAC boasts a voltage rating of 600V and an RMS current rating of 8A, making it suitable for a wide range of applications where precise power control is paramount.
Key Features
Let's delve into the standout features that make the BTA08-600BRG a standout in the world of electronics:
· With a maximum repetitive peak reverse voltage of 600V and an RMS on-state current of 8A, this TRIAC is well-equipped to handle a wide range of applications.
· The BTA08-600BRG features a maximum gate trigger voltage of 1.3V and a maximum gate trigger current of 100mA, ensuring reliable and precise operation.
· Operating seamlessly across temperatures ranging from -40°C to 125°C, this TRIAC is suitable for use in various environments and conditions.
· Packaged in a TO-220AB insulated tube with through-hole mounting, the BTA08-600BRG offers ease of installation and integration into your circuit designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the BTA08-600BRG:
Type | Parameter |
Maximum Rate of Rise of Off-State Voltage (V/us) | 400 |
Maximum Rate of Rise of On-State Current (A/us) | 50 |
Maximum Gate Trigger Voltage (V) | 1.3 |
Maximum Gate Trigger Current (mA) | 100 |
Surge Current Rating (A) | 84 |
Maximum Holding Current (mA) | 50 |
Repetitive Peak Reverse Voltage (V) | 600 |
Peak On-State Voltage (V) | 1.55@11A |
Repetitive Peak Forward Blocking Voltage (V) | 600 |
RMS On-State Current (A) | 8 |
Repetitive Peak Off-State Current (mA) | 0.005 |
Maximum Latching Current (mA) | 100 |
Average Gate Power Dissipation (W) | 1 |
Circuit Fusing Consideration (A²s) | 36 |
AC Switch | Yes |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 9.3(Max) |
Package Width | 4.6(Max) |
Package Length | 10.4(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO |
Supplier Package | TO-220AB Insulated |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
The versatility and robustness of the STMicroelectronics BTA08-600BRG make it suitable for a myriad of applications, including but not limited to:
· Motor Control: Used in motor speed control circuits for appliances, industrial machinery, and automotive applications.
· Lighting Systems: Employed in dimmer switches and lighting control circuits for adjustable brightness and intensity.
· Heating Control: Utilized in temperature control systems for heaters and furnaces.
· Power Supplies: Integrated into power regulation circuits for stable and efficient power delivery.
· AC Switching: Facilitates AC switching in various consumer and industrial electronic devices.
BTA08-600BRG's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
In conclusion, the STMicroelectronics BTA08-600BRG TRIAC stands as a testament to the ingenuity and versatility of semiconductor technology. With its robust design, impressive specifications, and diverse applications, this TRIAC empowers engineers and enthusiasts alike to innovate and create cutting-edge electronic systems.
