STTH108A: Features, Specs & More
When it comes to electronic circuits requiring efficiency and reliability, the STMicroelectronics STTH108A stands out as a robust switching diode. In this comprehensive article, we'll delve into the intricacies of the STTH108A, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
STTH108A's Overview

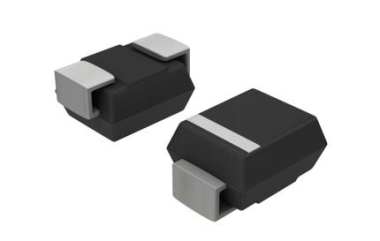

The STTH108A is a high-performance switching diode designed for applications requiring rapid switching capability and robust performance under varying conditions. As a single configuration diode, it offers exceptional peak reverse repetitive voltage of 800V, making it suitable for demanding environments where reliability is critical.
Key Features
Let's delve into the standout features that make the STTH108A a standout in the world of electronics:
· The STTH108A is specifically designed for applications requiring rapid switching, ensuring efficient performance in dynamic electronic circuits.
· With a peak reverse repetitive voltage of 800V, it offers robust reliability in high-voltage environments, suitable for diverse electronic applications.
· It supports a maximum continuous forward current of 1A and a peak non-repetitive surge current of 20A, providing stable operation under varying load conditions.
· Featuring a peak reverse recovery time of 75ns, it enables quick switching transitions, minimizing power loss and enhancing overall circuit efficiency.
· Operating reliably between -50°C to 175°C, it accommodates a wide range of environmental conditions, ensuring consistent performance in challenging operational settings.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STTH108A:
Type | Parameter |
Type | Switching Diode |
Configuration | Single |
Peak Reverse Repetitive Voltage (V) | 800 |
Maximum Continuous Forward Current (A) | 1 |
Peak Non-Repetitive Surge Current (A) | 20 |
Peak Forward Voltage (V) | 1.65 |
Peak Reverse Current (uA) | 5 |
Peak Reverse Recovery Time (ns) | 75 |
Minimum Operating Temperature (°C) | -50 |
Maximum Operating Temperature (°C) | 175 |
Packaging | Tape and Reel |
Maximum RMS Reverse Voltage (V) | 560 |
Mounting | Surface Mount |
Package Height | 2.7(Max) |
Package Width | 2.95(Max) |
Package Length | 4.6(Max) |
PCB changed | 2 |
Standard Package Name | DO |
Supplier Package | SMA |
Pin Count | 2 |
Lead Shape | J-Lead |
Applications
The versatility of the STTH108A extends its usefulness across various applications, including:
· Power Supplies: Efficiently rectifies AC to DC in power supply circuits.
· Switching Power Supplies: Enables high-speed switching in power supply units.
· Automotive: Used in automotive electronics for reliable performance under harsh conditions.
· Industrial: Suitable for industrial equipment requiring robust and efficient diodes.
· Consumer Electronics: Integrates smoothly into consumer electronics for enhanced reliability.
STTH108A's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
In conclusion, the STTH108A rectifier diode from STMicroelectronics embodies precision, efficiency, and reliability in its design. With its impressive specifications and versatile applications, it proves indispensable in modern electronic circuits requiring high-performance rectification. Whether in power supplies, motor control, or AC-DC converters, the STTH108A stands as a testament to STMicroelectronics' dedication to pushing the boundaries of semiconductor technology.
