IR2304STRPBF: Features, Specs & More
In the realm of electronic components, the Infineon IR2304STRPBF stands out as a versatile and efficient driver essential for various applications. In this comprehensive article, we'll delve into the intricacies of the IR2304STRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
IR2304STRPBF's Overview
The Infineon IR2304STRPBF is a high and low side non-inverting driver, optimized for half bridge configurations. This means it facilitates the independent operation of two outputs—perfect for driving IGBTs or MOSFETs in various applications. With a maximum supply voltage of 20V and under voltage lockout feature, it ensures safe and efficient operation across different voltage ranges.
Key Features
Let's delve into the standout features that make the IR2304STRPBF a standout in the world of electronics:
· The Infineon IR2304STRPBF operates as a high and low side driver.
· It utilizes a non-inverting configuration, ensuring compatibility with various applications.
· Designed as a half bridge driver, it facilitates independent control of two outputs.
· With dual drivers, it provides flexibility in system design and operation.
· Featuring two outputs, it supports simultaneous control of complementary devices.
· Compatible with CMOS, LSTTL, and voltages ranging from 3.3V to 15V, ensuring versatile integration into different circuit designs.
· Includes under voltage lockout, enhancing safety and reliability in operation.

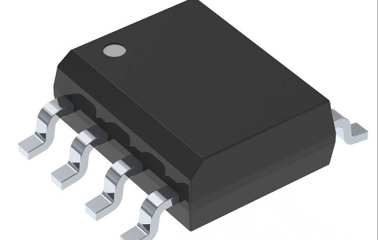

· Housed in a compact SOIC N package, it offers efficient surface-mounting capabilities.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the IR2304STRPBF:
Type | Parameter |
Driver Type | High and Low Side |
Driver Configuration | Non-Inverting |
Bridge Type | Half Bridge |
Number of Drivers | 2 |
High and Low Sides Dependency | Independent |
Type | IGBT|MOSFET |
Number of Outputs | 2 |
Maximum Rise Time (ns) | 300 |
Maximum Fall Time (ns) | 170 |
Maximum Propagation Delay Time (ns) | 330 |
Input Logic Compatibility | CMOS|LSTTL|3.3V(Min)|5V|15V |
Minimum Operating Supply Voltage (V) | 10 |
Maximum Operating Supply Voltage (V) | 20 |
Typical Input Low Threshold Voltage (V) | 0.8(Max) |
Typical Input High Threshold Voltage (V) | 2.3(Min) |
Reference Voltage (V) | 600(Max) |
Maximum Power Dissipation (mW) | 625 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Special Features | Under Voltage Lockout |
Maximum Turn-On Delay Time (ns) | 50 |
Maximum Turn-Off Delay Time (ns) | 50 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 4(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The versatility of the IR2304STRPBF makes it indispensable in a wide range of applications:
· Industrial Automation: Control systems, motor drives, and robotics benefit from its precise switching capabilities.
· Power Supplies: Enhances efficiency in DC-DC converters and inverters.
· Renewable Energy: Plays a crucial role in solar inverters and wind turbine control systems.
· Consumer Electronics: Used in white goods and home appliances for reliable performance.
IR2304STRPBF's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
In conclusion, the Infineon IR2304STRPBF driver offers unmatched versatility and performance in driving IGBTs and MOSFETs in various applications. Its robust design, coupled with advanced features like under voltage lockout and precise timing characteristics, makes it an indispensable component in modern electronic designs.
