STM32F072CBT6: Features, Specs & More
When it comes to selecting a microcontroller unit (MCU) for your next electronics project, the STMicroelectronics STM32F072CBT6 stands out as a versatile and high-performance choice. Designed for a wide range of applications, this 32-bit MCU delivers robust functionality and reliability. In this comprehensive article, we'll delve into the intricacies of the STM32F072CBT6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
STM32F072CBT6's Overview

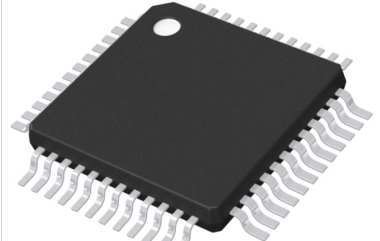

The STM32F072CBT6 is a 32-bit ARM Cortex M0 MCU from the STM32F family, renowned for its balance of performance and efficiency. It operates at a maximum frequency of 48 MHz and features a 32-bit data bus width, making it suitable for a variety of demanding applications. With 128KB of Flash memory and 16KB of RAM, it provides ample storage and processing capabilities for complex tasks.
Key Features
Let's delve into the standout features that make the STM32F072CBT6 a standout in the world of electronics:
· The STM32F072CBT6 supports a broad range of communication interfaces, including CAN, I2C, I2S, SPI, USART, and USB.
· Equipped with nine timers and a PWM channel, this MCU can handle precise timing operations and control tasks efficiently.
· The STM32F072CBT6 features a single ADC with 13 channels and a 12-bit resolution, as well as a single DAC with two channels and a 12-bit resolution.
· With a maximum power dissipation of just 370 mW, the STM32F072CBT6 is designed to be energy-efficient.
· It operates across a broad temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
· The integrated CAN controller enhances the MCU's ability to communicate over Controller Area Networks, making it suitable for automotive and industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32F072CBT6:
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M0 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 48 |
Maximum Clock Rate (MHz) | 48 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 128KB |
RAM Size | 16KB |
Programmability | Yes |
Interface Type | CAN/I2C/I2S/SPI/USART/USB |
Number of I/Os | 37 |
No. of Timers | 9 |
Timers Resolution (bit) | 32/16 |
PWM | 1 |
Number of ADCs | Single |
ADC Channels | 13 |
ADC Resolution (bit) | 12 |
Number of DACs | Single |
DAC Channels | 2 |
DAC Resolution (bit) | 12 |
USART | 4 |
UART | 0 |
USB | 1 |
SPI | 2 |
I2C | 2 |
I2S | 2 |
CAN | 1 |
Ethernet | 0 |
Watchdog | 1 |
Analog Comparators | 2 |
Parallel Master Port | No |
Real Time Clock | No |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 370 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Applications
The STM32F072CBT6's features make it well-suited for numerous applications:
· Industrial Automation: Its robust connectivity options and precise timer capabilities make it ideal for control systems and process automation.
· Consumer Electronics: The MCU's versatile I/O and communication interfaces cater to a wide range of consumer devices.
· Medical Devices: Its reliability and wide operating temperature range are beneficial for medical equipment that requires stable performance in varying conditions.
· Automotive: The CAN interface is particularly useful for automotive applications, allowing for seamless integration into vehicle networks.
STM32F072CBT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics STM32F072CBT6 offers a compelling blend of performance, versatility, and reliability. With its comprehensive set of features and broad range of applications, it stands out as an excellent choice for engineers and developers looking to build advanced electronic systems.
