T3035H-6I: Features, Specs & More
In the ever-evolving world of electronics, selecting the right components is crucial for achieving optimal performance. One such component that stands out is the STMicroelectronics T3035H-6I TRIAC. In this comprehensive article, we'll delve into the intricacies of the T3035H-6I, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
T3035H-6I's Overview

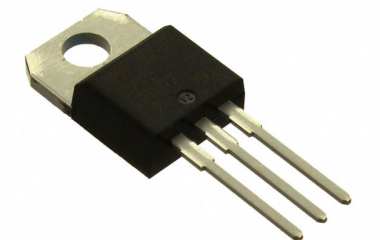

The STMicroelectronics T3035H-6I is a TRIAC (Triode for Alternating Current) designed to control AC actuators in appliances and industrial systems. With its robust capabilities and efficient performance, the T3035H-6I is ideal for applications that require reliable switching and control of AC loads. It is packaged in a TO-220AB insulated tube, ensuring durability and ease of integration into various circuits.
Key Features
Let's delve into the standout features that make the T3035H-6I a standout in the world of electronics:
· With a surge current rating of 284A, the T3035H-6I can handle high-power applications without failure.
· It operates with a repetitive peak reverse voltage of up to 600V, ensuring reliable performance in high-voltage scenarios.
· The TRIAC requires a maximum gate trigger voltage of only 1V and a trigger current of 35mA, making it easy to activate with standard control signals.
· The device comes in a TO-220AB insulated tube package, facilitating easy mounting and efficient thermal management.
· This TRIAC operates effectively between -40°C and 150°C, making it suitable for various industrial and household environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the T3035H-6I:
Type | Parameter |
Maximum Rate of Rise of Off-State Voltage (V/us) | 1000(Min) |
Maximum Rate of Rise of On-State Current (A/us) | 50 |
Maximum Gate Trigger Voltage (V) | 1 |
Maximum Gate Trigger Current (mA) | 35 |
Surge Current Rating (A) | 284 |
Maximum Holding Current (mA) | 60 |
Repetitive Peak Reverse Voltage (V) | 600 |
Peak On-State Voltage (V) | 1.55@42A |
Repetitive Peak Forward Blocking Voltage (V) | 600 |
Repetitive Peak Off-State Current (mA) | 0.01 |
AC Switch | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 9.3(Max) |
Package Width | 4.6(Max) |
Package Length | 10.4(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO |
Supplier Package | TO-220AB Insulated |
Pin Count | 3 |
Applications
The STMicroelectronics T3035H-6I TRIAC is primarily designed for controlling AC actuators in various applications, including:
· Home Appliances: This TRIAC can control motors and other components in household devices, enhancing energy efficiency and reliability.
· Industrial Systems: Its robust nature makes it suitable for industrial equipment, where it manages the power supply to motors, heaters, and other heavy loads.
· Lighting Control: The T3035H-6I can be integrated into dimming circuits for effective lighting control, providing smooth transitions between brightness levels.
T3035H-6I's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics T3035H-6I TRIAC is a versatile component that meets the demands of modern electronics. Its impressive specifications and reliability make it an excellent choice for controlling AC actuators in various applications.
