SPC56EL70L5CBOSR: Features, Specs & More
In the ever-evolving world of automotive electronics, the need for powerful, reliable, and efficient microcontroller units (MCUs) is more pressing than ever. The STMicroelectronics SPC56EL70L5CBOSR is a standout product that brings advanced functionality and high performance to automotive applications. In this comprehensive article, we'll delve into the intricacies of the SPC56EL70L5CBOSR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SPC56EL70L5CBOSR's Manufacturer
SPC56EL70L5CBOSR's Overview

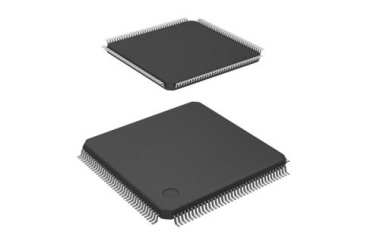

The SPC56EL70L5CBOSR is a 32-bit microcontroller from STMicroelectronics, designed for automotive applications where performance, durability, and security are crucial. It operates on a RISC architecture and integrates a 2MB flash memory and 192KB RAM to ensure seamless operation in complex automotive control systems. Designed to meet AEC-Q100 standards, the SPC56EL70L5CBOSR is built for reliability in harsh automotive environments.
Key Features
Let's delve into the standout features that make the SPC56EL70L5CBOSR a standout in the world of electronics:
· Operating at a maximum CPU frequency of 120 MHz, the SPC56EL70L5CBOSR delivers excellent processing power for demanding automotive tasks.
· Equipped with 2MB of flash memory and 192KB of RAM, this MCU provides ample storage for complex software and real-time data processing.
· The SPC56EL70L5CBOSR supports CAN and SPI interfaces, making it ideal for integration with other automotive systems and sensors.
· With 2 ADCs offering 16 channels and 12-bit resolution, this MCU is capable of processing high-precision sensor data.
· The MCU operates within a temperature range from -40°C to 125°C, ensuring reliability even under the most extreme environmental conditions.
· The watchdog timer and integrated real-time clock provide safety and time management for mission-critical systems.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SPC56EL70L5CBOSR:
Type | Parameter |
PPAP | Unknown |
Family Name | MPC56xx |
Instruction Set Architecture | RISC |
Device Core | e200z4d |
Core Architecture | e200 |
Maximum CPU Frequency (MHz) | 120 |
Maximum Clock Rate (MHz) | 120 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 2MB |
RAM Size | 192KB |
Programmability | Yes |
Interface Type | CAN/SPI |
Number of I/Os | 16 |
No. of Timers | 5 |
PWM | 2 |
Number of ADCs | 2 |
ADC Channels | 16/16 |
ADC Resolution (bit) | 12/12 |
USART | 0 |
UART | 0 |
USB | 0 |
SPI | 3 |
I2C | 0 |
I2S | 0 |
CAN | 3 |
Ethernet | 0 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 3|4.5 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Operating Supply Voltage (V) | 3.6|5.5 |
Maximum Power Dissipation (mW) | 1500 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 20 |
Package Length | 20 |
PCB changed | 144 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 144 |
Lead Shape | Gull-wing |
* SPC56EL70L5CBOSR's Datasheet
Applications
The SPC56EL70L5CBOSR is particularly well-suited for automotive electronics where real-time performance and high processing power are required. Here are some of the key applications:
· Engine Control Units (ECUs): The MCU's advanced processing power and high-speed interfaces make it an excellent choice for managing engine functions and optimizing performance.
· Advanced Driver Assistance Systems (ADAS): With its robust features and CAN interface, it supports the complex requirements of ADAS, enabling functions like lane-keeping, collision avoidance, and adaptive cruise control.
· Safety Systems: The reliability and extensive I/O support make this MCU ideal for safety-critical applications, including airbag systems and braking control.
· Electric Vehicles (EVs): The MCU is also valuable in EV control systems, particularly for battery management and powertrain control.
SPC56EL70L5CBOSR's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics SPC56EL70L5CBOSR offers an impressive blend of performance, versatility, and durability, making it an ideal choice for demanding automotive applications. With its high-speed processing, ample memory, and support for critical interfaces, this MCU ensures that automotive systems can operate seamlessly in even the most challenging environments. Whether you’re developing ECUs, ADAS, or other safety-critical applications, the SPC56EL70L5CBOSR provides the power and reliability required to bring these systems to life.
