What Are Ethernet Connectors?
In the context of the rapid development of information technology and industrial automation, the speed, stability, and security of data transmission have become the core requirements in modern electronic system design. Ethernet connectors, as key components that enable high-speed and reliable data transfer between devices, are widely used in various fields such as home networks, enterprise data centers, industrial automation, in-vehicle networks, and the Internet of Things (IoT). This article will delve into the definition, working principles, main features and advantages, applications, and more regarding Ethernet connectors.
Catalog
I. What are Ethernet Connectors?
I. What are Ethernet Connectors?
Ethernet connectors are electronic components used to physically connect network devices to enable data transmission. They typically consist of metal pins, insulators, and a housing. Common types include RJ45 connectors, M12 connectors, M8 connectors, and the emerging iX connectors. Each type of connector is designed for specific applications, such as:
· RJ45 Connector: Widely used in home and office networks.
· M12/M8 Connectors: Primarily used for industrial automation and devices in harsh environments.

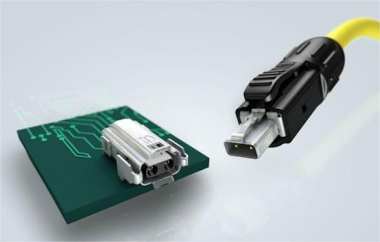

· iX Connectors: Designed for next-generation industrial automation and IoT applications, offering higher data transfer rates and smaller sizes.
II. Working Principles
The core function of an Ethernet connector is to reduce electromagnetic interference (EMI) through differential signal transmission. The process is as follows:
· Signal Encoding: Devices convert data into electrical signals, which are transmitted via twisted pair cables.
· Pin Assignment: In RJ45 connectors, pins 1-2 and 3-6 are used for sending (TX) and receiving (RX) signals, enabling full-duplex communication.
· Anti-Interference Design: Twisted pair cables cancel out external interference through reverse current, and shielded connectors (e.g., STP) add a metal layer to further enhance signal integrity.
· Terminal Processing: The connector interfaces with the network card or switch’s PHY chip to decode the signal.
III. Features and Advantages
Ethernet connectors are highly favored in the industry due to their excellent performance and versatile design. Their key features and advantages include:
· High-Speed Transmission: Supports Gigabit to 10-Gigabit speeds, meeting the demands of 4K video streaming and real-time cloud computing.
· High Reliability: Physical connections avoid the signal degradation seen with wireless signals, ensuring zero packet loss.
· Durability: Gold-plated contacts resist oxidation, with insertion and extraction lifespans exceeding 1,000 cycles (e.g., TE Connectivity’s RJ45 series).
· Flexible Expansion: Easily construct large-scale network topologies by cascading switches.
· PoE Support: Compliant with the IEEE 802.3bt standard, it can simultaneously transmit data and power (up to 90W), simplifying the deployment of security cameras and IP phones.
IV. Applications
Ethernet connectors have a wide range of applications in the electronic components industry, including:
· Data Centers: Cat8 connectors are used for server rack interconnects, supporting 40Gbps ultra-high-speed switching.
· Industrial Automation: M12 waterproof connectors facilitate communication between PLCs and sensors, withstanding vibrations and exposure to oil and dust.
· Smart Buildings: Shielded RJ45 connectors link home gateways with smart devices, ensuring smooth 4K/8K video transmission.
· Telecom Infrastructure: SFP+ fiber modules paired with high-speed connectors build 5G fronthaul networks.
· In-Vehicle Networks: Automotive Ethernet connectors (e.g., MOST) support real-time data exchange for ADAS systems.
V. Conclusion
As an indispensable component in the electronic components industry, Ethernet connectors provide robust support for high-speed, stable, and secure data transmission. Their importance is continuously growing across data centers, industrial automation, in-vehicle networks, and IoT applications. Looking ahead, as new technologies emerge and the global industrial internet expands, the Ethernet connector market is poised for substantial growth. For companies involved in network infrastructure development and device manufacturing, continuous innovation, improving product performance, and reducing energy consumption will be key to gaining market share and achieving sustainable development.
