AD652AQ: Features, Specs & More
In a world increasingly driven by data precision and conversion speed, Analog Devices' AD652AQ Voltage-to-Frequency Converter (VFC) stands out as a reliable, high-performance solution. In this comprehensive article, we'll delve into the intricacies of the AD652AQ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AD652AQ's Overview

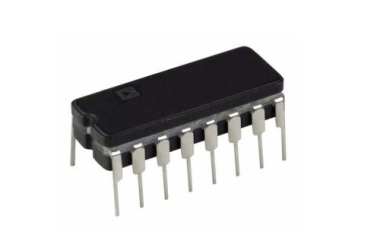

The AD652AQ is a synchronous Voltage-to-Frequency Converter (VFC) that converts an analog voltage input into a frequency output signal. With its 2 MHz full-scale frequency capability and a linearity error of just ±0.05% FSR, this device provides outstanding performance in systems where precision, speed, and stability matter most.
It comes in a 16-pin ceramic dual in-line package (CDIP) and is designed for through-hole mounting, making it ideal for rugged environments and legacy systems.
Key Features
Let's delve into the standout features that make the AD652AQ a standout in the world of electronics:
· High-Speed Operation: Supports up to 2MHz full-scale frequency, making it suitable for applications where conversion speed is critical.
· Superior Accuracy: Boasts ±0.05% FSR linearity error, ensuring minimal deviation during conversions.
· Flexible Power Supply: Operates on single (12–36V) or dual (±6V to ±18V) supplies, allowing for integration into a wide range of systems.
· Industrial-Grade Temperature Range: Withstands temperatures from -40°C to +85°C, ensuring dependable performance in harsh environments.
· Synchronous Conversion: Enables precise timing and low-jitter performance.
· Compact CDIP Package: 16-pin through-hole CDIP makes it easy to mount and integrate into existing PCBs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AD652AQ:
Type | Parameter |
Converter Function | VFC |
Converter Type | Synchronous |
Full Scale Frequency (kHz) | 2000 |
Linearity Error | ±0.05%FSR |
Minimum Single Supply Voltage (V) | 12 |
Typical Single Supply Voltage (V) | 15|18|24 |
Maximum Single Supply Voltage (V) | 36 |
Minimum Dual Supply Voltage (V) | ±6 |
Typical Dual Supply Voltage (V) | ±15 |
Maximum Dual Supply Voltage (V) | ±18 |
Power Supply Type | Single|Dual |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 3.56(Max) |
Package Width | 7.87(Max) |
Package Length | 21.34(Max) |
PCB changed | 16 |
Standard Package Name | DIP |
Supplier Package | CDIP |
Pin Count | 16 |
Lead Shape | Through Hole |
Applications
· Industrial automation systems
· Sensor signal conditioning
· Precision data acquisition
· Analog-to-digital conversion
· Instrumentation and control systems
· Process monitoring and feedback loops
AD652AQ's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI AD652AQ is more than just a Voltage-to-Frequency Converter — it's a high-speed, high-accuracy solution engineered for professionals who refuse to compromise on precision. With a wide input range, tight linearity error, and robust industrial-grade performance, it's no wonder this component remains a go-to choice in critical analog-to-digital conversion systems.
