What Are RF Switches?
RF switches are essential components in today's electronic communication systems, playing a critical role in fields such as 5G networks, the Internet of Things (IoT), satellite communications, radar systems, and automated test equipment (ATE). With the rapid advancement of wireless technologies and increasing demands for high-frequency applications, the performance and reliability of RF switches have become more important than ever. This article provides a comprehensive overview of RF switches, covering their definition, working principle, types, key features, applications, and more.
Catalog
III. Main Types of RF Switches
IV. Key Features and Advantages
I. What Are RF Switches?
Also known as microwave switches, RF switches are electronic devices specifically designed to route radio frequency (RF) or microwave signals between different paths. They operate by electronically or mechanically toggling between “on” (low impedance) and “off” (high impedance) states, enabling the connection or isolation of signal paths or switching between multiple outputs.
II. Work Principles
RF switches control signal flow by changing the impedance along the signal path within a circuit.
· On State (Closed): The switch presents a low impedance, allowing RF signals to pass through with minimal loss.
· Off State (Open): The switch presents a high impedance, blocking signal transmission and effectively isolating the signal path.
Control of the switch can be electronic—using voltage or current signals to drive semiconductor switches—or mechanical, such as via relay contacts.
III. Main Types of RF Switches

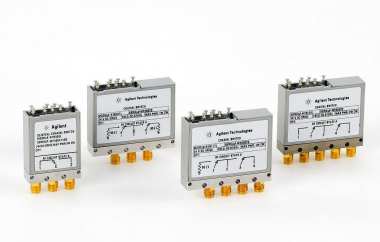

· Electromechanical RF Switches: Utilize mechanical contacts to switch signals. They offer extremely low insertion loss and high isolation, making them ideal for high-power applications. However, their switching speed is relatively slow, and they tend to be larger in size.
· Solid-State RF Switches: Built using PIN diodes, field-effect transistors (FETs), or CMOS technology, these switches feature fast switching speeds, long lifespans, and compact size. They are widely used in mobile communications and consumer electronics.
· MEMS RF Switches: Based on Micro-Electro-Mechanical Systems technology, MEMS switches combine mechanical and semiconductor advantages to deliver ultra-low insertion loss, high isolation, and low power consumption. They are especially suitable for millimeter-wave and high-frequency applications.
IV. Key Features and Advantages
· Insertion Loss: Typically ≤1 dB, which significantly reduces system noise and signal degradation.
· Isolation: Typically ≥60 dB, effectively preventing signal crosstalk and ensuring system integrity.
· Voltage Standing Wave Ratio (VSWR): ≤1.5:1, ensuring good impedance matching and efficient power transfer.
· Switching Speed: Ranges from nanoseconds to milliseconds, meeting diverse real-time application needs.
· Frequency Range: Covers DC to 50+ GHz, supporting a wide range of applications from mobile communications to radar and satellite links.
V. Applications
· Mobile Communications: Antenna switching for smartphones and base stations, supporting multi-band and multi-mode operation.
· Automated Test Equipment (ATE): Enables automatic routing of multiple signal paths to improve testing efficiency.
· Satellite and Aerospace Communications: Supports high-frequency, wideband signal transmission.
· Automotive Electronics: Used in millimeter-wave radar systems and autonomous driving sensors.
· Internet of Things (IoT) Devices: Low-power, compact RF switches facilitate smart home devices, wearables, and other IoT applications.
VI. Conclusion
RF switches serve as vital “bridges” connecting the world of high-frequency signals. They play a pivotal role across communication, testing, radar, aerospace, and automotive electronics industries. As technology advances and markets expand, the demand for switches with lower insertion loss, higher isolation, ultra-fast switching, and miniaturized integration will continue to drive the evolution of RF switch technology toward higher frequency bands and enhanced performance.
