LTC2910CGN#TRPBF: Features, Specs & More
When it comes to safeguarding electronic systems, precision and reliability are non-negotiable. The ADI LTC2910CGN#TRPBF is a specialized processor supervisor designed to ensure stable voltage monitoring in various critical applications. In this comprehensive article, we'll delve into the intricacies of the LTC2910CGN#TRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LTC2910CGN#TRPBF's Manufacturer
LTC2910CGN#TRPBF's Overview

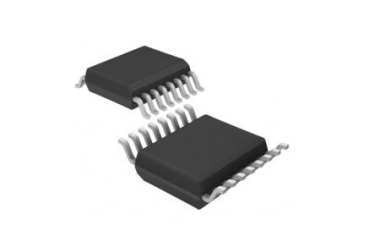

The LTC2910CGN#TRPBF is a processor supervisor integrated circuit (IC) manufactured by Analog Devices Inc. (ADI). It is engineered to monitor multiple supply voltages with high accuracy and provide reset outputs to maintain system integrity. It supports both active high, active low, and open-drain output drivers, making it versatile for various system designs. This device operates within a wide voltage range and is packaged in a compact 16-pin SSOP form factor, optimized for surface mounting on printed circuit boards (PCBs).
Key Features
Let's delve into the standout features that make the LTC2910CGN#TRPBF a standout in the world of electronics:
· Monitors voltages at 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V.
· Provides a minimum reset threshold voltage of 0.492V and a typical of 0.5V.
· Supports active high, active low, and open-drain output drivers.
· Maximum reset active time is 12.5 milliseconds.
· Operates with supply voltages from 2.3V to 6.9V.
· Maximum supply current consumption is only 100 microamps.
· Manual reset function is included for flexible system control.
· Designed for commercial temperature range from 0°C to 70°C.
· Available in a 16-pin SSOP package with gull-wing leads.
· Surface mount device ideal for automated PCB assembly.
· Tape and reel packaging supports high-volume manufacturing.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LTC2910CGN#TRPBF:
Type | Parameter |
Maximum Reset Active Time (ms) | 12.5 |
Output Driver | Active High/Active Low/Open Drain |
Minimum Reset Threshold Voltage (V) | 0.492 |
Typical Reset Threshold Voltage (V) | 0.5 |
Maximum Reset Threshold Voltage (V) | 0.508 |
Monitored Voltage (V) | 1.2|1.8|2.5|3.3|5|12 |
Minimum Operating Supply Voltage (V) | 2.3 |
Maximum Operating Supply Voltage (V) | 6.9 |
Maximum Supply Current (uA) | 100 |
Power Fail Detection | No |
Watchdog Timer | No |
Manual Reset | Yes |
Chip Enable Signals | No |
Battery Backup Switching | No |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 70 |
Supplier Temperature Grade | Commercial |
Packaging | Tape and Reel |
Type | Voltage Monitor |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 3.99(Max) |
Package Length | 4.98(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SSOP N |
Pin Count | 16 |
Lead Shape | Gull-wing |
* LTC2910CGN#TRPBF's Datasheet
Applications
This versatile processor supervisor finds wide use in many critical electronic systems, including:
· Desktop and notebook computers where stable core voltage is essential.
· Network servers requiring continuous uptime and protection from voltage dips.
· Monitoring of core and I/O voltages in embedded systems and microprocessor-based devices.
LTC2910CGN#TRPBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI LTC2910CGN#TRPBF processor supervisor is a reliable, energy-efficient, and precise solution for voltage monitoring in critical electronics systems. Its flexibility in output drivers and multi-voltage monitoring capabilities make it a valuable component for engineers designing robust power management solutions.
