What Are PTC Resettable Fuses?
As electronic devices continue to evolve towards miniaturization, higher performance, and greater intelligence, the demand for effective circuit protection components is rapidly increasing. PTC resettable fuses have become a critical part of modern electronic protection thanks to their ability to automatically interrupt overcurrent conditions and then restore functionality once the fault clears. This article will provide an in-depth look at the definition, working principle, key features, and applications of PTC resettable fuses.
Catalog
I. What Are PTC Resettable Fuses?
III. Key Features and Advantages
I. What Are PTC Resettable Fuses?

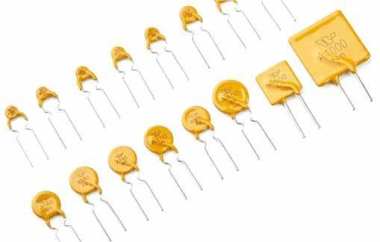

A PTC (Positive Temperature Coefficient) resettable fuse is a protective component designed based on the polymer's positive temperature coefficient effect. Its core material consists of a polymer composite embedded with conductive carbon black particles. Under normal conditions, the fuse maintains a low resistance state. When the current exceeds a predetermined threshold, heat generated inside causes the polymer to expand, disrupting the conductive pathways and sharply increasing resistance. This limits the current flow, protecting the circuit from overcurrent damage. After the fault is removed, the device cools down and returns to its low-resistance state, achieving an automatic reset.
II. Working Principle
The operation of a PTC resettable fuse relies on the positive temperature coefficient characteristics of the polymer material:
· Normal State: The polymer remains in a crystalline phase with tightly packed carbon black particles forming continuous conductive paths, resulting in low resistance and allowing normal current flow.
· Overcurrent Trigger: When the current exceeds the hold current (IHOLD), the device heats up, causing the polymer to transition into a non-crystalline phase and expand, breaking the conductive chains. This causes a significant rise in resistance, restricting current flow.
· Self-Resetting Process: Once the abnormal current disappears, the device gradually cools, the polymer returns to its crystalline phase, the conductive pathways reform, resistance drops back to a low level, and normal circuit operation resumes.
III. Key Features and Advantages
· Automatic Reset: No need for replacement, reducing maintenance costs; ideal for devices that are difficult to service frequently.
· Compact Size: Available in various package types to meet the miniaturization demands of modern electronics.
· Cost-Effective: Simple structure and low manufacturing cost.
· Reusable: Can withstand thousands of overcurrent protection cycles.
· Strong Environmental Adaptability: Suitable for a wide range of operating environments, though caution is advised in high-temperature conditions.
· Moderate Response Time: Responds to overcurrent conditions within milliseconds to seconds, meeting most application needs.
IV. Key Parameters
· Hold Current (IHOLD): The maximum continuous current the device can carry at +23°C while maintaining a low resistance state.
· Trip Current (ITRIP): Typically about twice the IHOLD, the minimum current required to trigger the device into a high resistance state.
· Maximum Current (IMAX): The highest fault current the device can safely withstand at rated voltage.
· Maximum Voltage (VMAX): The maximum DC voltage at which the device can operate safely for extended periods.
· Trip Time (tTRIP): The time required for the device to transition into a high-resistance state under overcurrent conditions; the higher the current, the faster the response.
· Initial Resistance (Ri) & Resistance After Trip (Rtr): Describe the resistance change and recovery characteristics.
V. Applications
Thanks to their reliability and ease of maintenance, PTC resettable fuses are widely used in:
· Consumer Electronics: USB ports, laptops, mobile devices, wearables, and more.
· Battery System Protection: Embedded in charging circuits and battery packs to prevent short circuits and overcurrent.
· Automotive Electronics: Protecting in-vehicle networks, wiring harnesses, anti-theft systems, etc.
· Communication and Industrial Equipment: Safeguarding routers, switches, PLCs, sensor interfaces.
· Audio Systems: Especially for speaker protection, including tweeters.
· Medical and Aerospace Equipment: Ideal for modules that are difficult to access or replace frequently.
VI. Conclusion
As an economical, efficient, and convenient circuit protection solution, PTC resettable fuses play a vital role in modern electronic devices. Their unique ability to automatically disconnect and then reset offers effective defense against overcurrent damage, enhancing system stability and safety. Selecting the right PTC resettable fuse is crucial for ensuring the reliable operation of electronic products.
