Three-Phase Reactor vs. Synchronous Transformer?

In the power system and electronics industry, both three-phase reactors and synchronous transformers are essential components. While they are both electromagnetic devices, their functions, applications, and operating principles differ significantly. Three-phase reactors are primarily used to limit current, suppress harmonics, and improve power factor, acting as guardians of stable power system operation. On the other hand, synchronous transformers specialize in providing precise synchronization signals for power electronic devices such as thyristors, ensuring accurate phase control and serving as the core of precision control systems. This article dives into the concepts, functions, structures, applications, and operating principles of these two devices.



Catalog

I. What is a Three-Phase Reactor?

II. What is a Synchronous Transformer?

III. Key Differences

IV. Conclusion

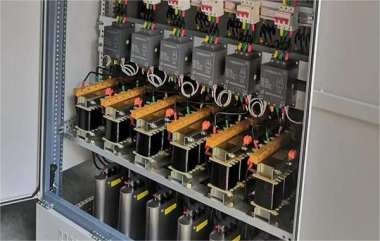

I. What is a Three-Phase Reactor?

A three-phase reactor is a passive power component mainly used to limit current in AC circuits. It consists of three coils, which can be identical or different, and may be air-core or iron-core, corresponding to the three phases in a power system.

Its main functions include limiting short-circuit currents, improving power factor, reducing harmonics, and suppressing voltage fluctuations. For example, in long-distance transmission lines, reactors effectively mitigate voltage swings caused by load changes, protecting connected equipment. A common type is the three-phase incoming-line reactor, typically installed at the power input end to smooth voltage spikes and reduce harmonic interference.


II. What is a Synchronous Transformer?

A synchronous transformer is a special type of transformer mainly used to provide synchronized signals for power electronic devices like thyristors. It converts high-voltage signals from the power grid into lower-voltage signals suitable for control circuits while maintaining consistent phase relationships.

Its main functions include supplying synchronization signals, voltage conversion, isolation protection, and phase control. For instance, in thyristor rectifier circuits, a synchronous transformer ensures that trigger pulses are sent at the correct moment, enabling precise power control.



III. Key Differences

Three-phase reactors and synchronous transformers differ significantly in functions, structure, applications, operating principles, and performance parameters. Here’s a detailed comparison:

1. Functional Differences

· Three-Phase Reactor: Primarily used to limit current (e.g., short-circuit currents), improve power quality (reduce harmonics and voltage fluctuations), provide reactive power compensation, and protect electrical equipment. For example, it can be combined with capacitors to form a resonant circuit, boosting system power factor.

· Synchronous Transformer: Its core function is to provide synchronized signals, ensuring thyristor trigger pulses align with anode voltage. It also performs voltage conversion and provides electrical isolation, protecting low-voltage control circuits from high-voltage impact.

2. Structural Differences

· Three-Phase Reactor: Usually made of three coils, either wound on an iron core (iron-core reactors) or air-core. Iron-core reactors often use high-quality silicon steel sheets and include an air gap to store energy and prevent saturation. Coils are generally wound with insulated copper wire and vacuum-impregnated with varnish for durability.

· Synchronous Transformer: Has a traditional transformer structure, including primary and secondary windings and an iron core (typically without an air gap). Its design focuses on precise voltage conversion and phase consistency rather than energy storage.

3. Application Differences

· Three-Phase Reactor: Mainly used in power systems for current management and power quality optimization, such as limiting short-circuit currents, correcting power factor, filtering grid harmonics, and protecting inverter and motor drive systems.

· Synchronous Transformer: Specifically used in power electronic control circuits, primarily to provide synchronized trigger signals for thyristor rectifier circuits, ensuring precise power regulation and electrical isolation between high-voltage and low-voltage control circuits.

4. Operating Principle Differences

· Three-Phase Reactor: Operates based on inductance. When current flows through the coil, a magnetic field is created, storing energy and generating inductive reactance that resists changes in current. Its impedance depends on the number of coil turns, core material, and air-gap size.

· Synchronous Transformer: Works on the principle of electromagnetic induction. When voltage is applied to the primary winding, a proportionally reduced voltage is induced in the secondary winding, strictly maintaining the input phase relationship to provide a synchronized reference for control circuits.

5. Performance Parameter Differences

· Three-Phase Reactor: Key parameters include reactance (often expressed as a percentage impedance, e.g., 2%-4%), rated operating current (typically from a few amps to several thousand amps), and insulation heat class (e.g., Class H, 180°C).

· Synchronous Transformer: Focuses on voltage ratio accuracy, phase consistency, rated capacity, and insulation strength to ensure reliability and safety in synchronized trigger control.



IV. Conclusion

In short, three-phase reactors and synchronous transformers each serve distinct purposes in a circuit. One mainly handles current control and harmonic suppression, while the other provides precise synchronization signals. Understanding their differences helps in selecting and applying them effectively in practical power systems. With ongoing technological advancements, these components have become increasingly sophisticated, meeting modern power systems’ demands for efficient and stable operation. Choosing and using them correctly is crucial for maintaining overall system stability and reliability.
