LSHD-F101: Features, Specs & More
The LITEON LSHD-F101 is a high-performance single-digit LED display module designed for electronics applications. It features bright red illumination with precise numeric display capabilities. This module is widely used in consumer electronics, measurement instruments, and embedded system projects. In this comprehensive article, we'll delve into the intricacies of the LSHD-F101, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LSHD-F101's Overview

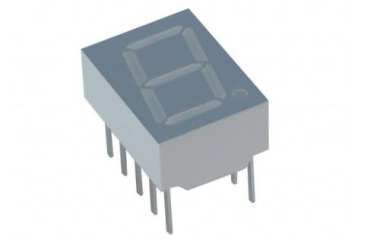

The LSHD-F101 is a single-digit display module manufactured by LITEON. It is designed to display numeric characters using 8 individual LEDs arranged in a 7-segment plus decimal point configuration. This module uses a common anode setup, meaning all LED anodes are connected together. It is primarily used to show numeric information in electronic devices and instrumentation.
Key Features
Let's delve into the standout features that make the LSHD-F101 a standout in the world of electronics:
· The LSHD-F101 features a single-digit numeric display.
· It contains 8 bright red LEDs for clear visibility.
· Each digit measures 0.39 inches in height.
· It uses a common anode configuration for easy integration.
· The module provides a luminous intensity of 9750 ucd.
· The dominant wavelength is 639 nm, while peak wavelength is 650 nm.
· Maximum forward current is 25 mA, ensuring safe operation.
· Maximum reverse voltage is 5 V to prevent damage.
· The operating temperature ranges from -35°C to 105°C.
· It comes in a 10-pin DIP through-hole mounting package.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LSHD-F101:
Type | Parameter |
Type | Module |
Number of Digits | 1 |
Color | Red |
Number of LEDs | 8 |
Digit Size (in) | 0.39 |
Character Displayed | Numeric |
Intensity (ucd) | 9750 |
Dominant Wavelength (nm) | 639 |
Peak Wavelength (nm) | 650 |
Configuration | Common Anode |
Maximum Forward Current (mA) | 25 |
Maximum Reverse Current (uA) | 100 |
Test Current (mA) | 20 |
Maximum Reverse Voltage (V) | 5 |
Maximum Forward Voltage (V) | 2.6 |
Maximum Power Dissipation (mW) | 70 |
Minimum Operating Temperature (°C) | -35 |
Maximum Operating Temperature (°C) | 105 |
Mounting | Through Hole |
Package Height | 6.1 |
Package Width | 9.7 |
Package Length | 12.9 |
PCB changed | 10 |
Standard Package Name | DIP |
Supplier Package | DIP Module |
Pin Count | 10 |
Applications
The LSHD-F101 is used across multiple electronics applications:
· Digital clocks and timers for numeric display.
· Measuring instruments and counters.
· Embedded electronics for numeric readouts.
· Consumer electronics like home appliances and audio equipment.
· Industrial control panels where numeric information is required.
LSHD-F101's Manufacturer
Lite-On was started in 1975 by several Taiwanese Texas Instruments ex-employees. Lite-On (also known as LiteOn and LiteON) is a Taiwanese company that primarily manufactures consumer electronics, including LEDs, semiconductors, computer chassis, monitors, motherboards, optical disc drives, and other electronic components. The Lite-On group also consists of some non-electronic companies like a finance arm and a cultural company.
Conclusion
The LITEON LSHD-F101 1-digit red LED display module combines compact design, high brightness, and reliability. Its common anode configuration, standard DIP package, and wide operating temperature range make it perfect for both professional electronics and DIY projects. If you need a numeric display solution that is easy to integrate and durable, the LSHD-F101 is an excellent choice.
