PVG612SPBF: Features, Specs & More
In modern electronics, choosing the right solid-state relay (SSR) can make the difference between a reliable system and frequent failures. The Infineon Technologies PVG612SPBF is a compact, high-performance SSR designed to handle low input currents and moderate output loads. It delivers exceptional performance in both AC and DC applications while offering robust electrical isolation. In this comprehensive article, we'll delve into the intricacies of the PVG612SPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

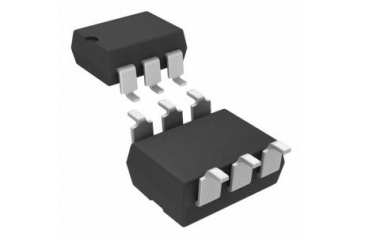

PVG612SPBF's Overview
The PVG612SPBF is a solid-state relay (SSR) that allows electrical control of circuits without mechanical switching. It converts a small DC input signal into a controlled AC or DC output using a MOSFET as the switching element. Its design minimizes wear and tear, reduces noise, and improves longevity compared to traditional mechanical relays.
Key Features
Let's delve into the standout features that make the PVG612SPBF a standout in the world of electronics:
· It operates with a maximum input current of 25 mA, suitable for low-power control circuits.
· The device can handle a maximum output voltage of 60 V, supporting moderate voltage loads.
· It delivers a maximum output current of 1 A at 40°C ambient temperature.
· MOSFET output ensures fast switching and reliable performance.
· The relay supports both AC and DC output, increasing application versatility.
· It provides I/O isolation voltage of 4000 V RMS, protecting sensitive circuits.
· Input-to-output capacitance is only 1 pF, reducing signal interference.
· Maximum turn-on time is 2 ms, ensuring quick response.
· Maximum turn-off time is 0.5 ms, allowing fast circuit deactivation.
· Circuit arrangement is 1 Form A, a single-pole, single-throw configuration.
· Operating temperature ranges from -40°C to 85°C, suitable for harsh environments.
· Surface mount design with a 6-pin PDIP SMD package ensures compact PCB integration.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PVG612SPBF:
Type | Parameter |
Input Type | DC |
Maximum Input Current (mA) | 25 |
Maximum Output Voltage (V) | 60 |
Maximum Output Current (A) | 1@Ta=40C |
Output Device | MOSFET |
Output Type | AC|DC |
I/O Isolation Voltage (V) | 4000(RMS) |
Typical Input to Output Capacitance (pF) | 1(Max) |
Maximum Turn-On Time (ms) | 2 |
Maximum Turn-Off Time (ms) | 0.5 |
Circuit Arrangement | 1 Form A |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 3.42(Max) |
Package Width | 6.47(Max) |
Package Length | 8.63(Max) |
PCB changed | 6 |
Standard Package Name | DIP |
Supplier Package | PDIP SMD |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The Infineon PVG612SPBF relay is ideal for a wide range of electronics and industrial applications.
· It is used in signal switching circuits for microcontrollers and low-power control boards.
· The SSR is suitable for industrial automation systems, enabling reliable control without mechanical wear.
· It supports home appliances for safe and silent switching of AC/DC loads.
· Engineers use it in measurement and testing equipment where fast and precise switching is critical.
· Its compact size and surface-mount design make it perfect for PCB-integrated electronic modules.
PVG612SPBF's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon PVG612SPBF is a versatile and reliable solid-state relay for low-power DC input and moderate AC/DC output applications. Its MOSFET output, fast switching times, and high isolation voltage make it suitable for industrial, consumer, and embedded electronics. If you need a compact, durable SSR with precise control capabilities, the PVG612SPBF is an excellent choice.
