BQ76PL102RGTT: Features, Specs & More
The TI BQ76PL102RGTT is a high-performance battery monitoring and balancing solution designed for Li-Ion cells. It provides accurate voltage monitoring and balancing for up to 16 battery cells. This component ensures long-term battery health, safety, and efficiency in modern electronics applications. In this comprehensive article, we'll delve into the intricacies of the BQ76PL102RGTT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

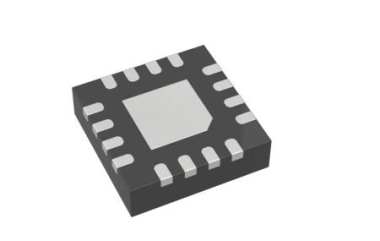

BQ76PL102RGTT's Overview
The TI BQ76PL102RGTT is a battery balancer and battery monitoring IC designed for Li-Ion cells. It manages up to 16 cells in series. This IC continuously monitors individual cell voltages. It balances the cells to maximize battery life and ensure safe operation. The device supports surface-mount packaging for compact and efficient PCB design.
Key Features
Let's delve into the standout features that make the BQ76PL102RGTT a standout in the world of electronics:
· The BQ76PL102RGTT supports Li-Ion battery monitoring for up to 16 cells.
· It provides a maximum supply current of 0.35 mA for low-power operation.
· The IC operates reliably with supply voltages from 2.8 V to 4.5 V.
· Typical operating voltage is 3.6 V for standard applications.
· The device can function in temperatures ranging from -40°C to 85°C.
· It comes in a compact 16-pin VQFN package for easy surface mount.
· The package dimensions are 3.1 mm × 3.1 mm × 0.95 mm for small PCB footprints.
· It uses a no-lead QFN design to meet modern manufacturing standards.
· The IC is supplied in tape and reel packaging for automated assembly.
· Active balancing ensures all cells maintain optimal charge levels.
· High precision voltage monitoring improves battery safety and efficiency.
· Integration into battery management systems is simple and reliable.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the BQ76PL102RGTT:
Type | Parameter |
Type | Battery Balancer|Battery Monitoring |
Battery Type | Li-Ion |
Maximum Supply Current (mA) | 0.35 |
Minimum Operating Supply Voltage (V) | 2.8 |
Typical Operating Supply Voltage (V) | 3.6 |
Maximum Operating Supply Voltage (V) | 4.5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 3.1(Max) |
Package Length | 3.1(Max) |
PCB changed | 16 |
Standard Package Name | QFN |
Supplier Package | VQFN EP |
Pin Count | 16 |
Lead Shape | No Lead |
Applications
The BQ76PL102RGTT is used in multiple battery-intensive applications:
· Electric vehicles and hybrid cars require precise battery monitoring.
· Energy storage systems need active cell balancing for safety.
· Industrial power backup systems use the IC for efficient battery management.
· Robotics and autonomous devices benefit from long-lasting battery performance.
· Solar power battery packs require reliable voltage monitoring.
BQ76PL102RGTT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI BQ76PL102RGTT is a versatile and reliable solution for Li-Ion battery management. Its compact design, wide operating temperature range, and active balancing features make it ideal for modern electronics requiring efficient battery performance. Whether for electric vehicles, energy storage, or industrial applications, this IC ensures optimal battery health and safety.
