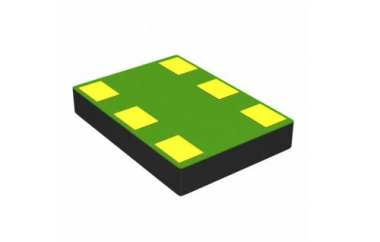

LMK61A2-100M00SIAT: Features, Specs & More
When it comes to high-performance oscillators for industrial electronics, the TI LMK61A2-100M00SIAT stands out as a reliable solution. This 100MHz LVDS oscillator offers precise frequency stability and versatile mounting options, making it ideal for modern electronic designs. In this comprehensive article, we'll delve into the intricacies of the LMK61A2-100M00SIAT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LMK61A2-100M00SIAT's Manufacturer
LMK61A2-100M00SIAT's Overview
The LMK61A2-100M00SIAT is a programmable crystal oscillator designed for industrial-grade applications. It operates at 100 MHz with ±50 ppm frequency stability, ensuring stable and accurate timing for critical electronic circuits. Its LVDS output and low-voltage operation make it a compact yet robust choice for high-speed applications.
Key Features
Let's delve into the standout features that make the LMK61A2-100M00SIAT a standout in the world of electronics:
· The oscillator supports a standard frequency of 100 MHz, suitable for various timing needs.
· It provides frequency stability of ±50 ppm under industrial conditions.
· The maximum symmetry is 55%, enabling balanced signal output.
· It features LVDS output, which reduces noise in high-speed circuits.
· The typical operating voltage is 3.3V, with a safe range from 3.135V to 3.465V.
· The device operates in a wide temperature range of -40°C to 85°C, suitable for harsh environments.
· It supports surface-mount PCB integration, ensuring compact footprint designs.
· The package comes in Tape and Reel, making it convenient for automated assembly.
· Its QFM package measures 7.1mm x 5.1mm x 1.15mm, ideal for space-constrained boards.
· The oscillator draws a maximum supply current of 196 mA, optimizing power efficiency.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LMK61A2-100M00SIAT:
Type | Parameter |
Type | Programmable Crystal Oscillator |
Standard Frequency (MHz) | 100 |
Frequency Stability (ppm) | ±50 |
Maximum Symmetry (%) | 55 |
Output Level | LVDS |
Minimum Operating Supply Voltage (V) | 3.135 |
Maximum Operating Supply Voltage (V) | 3.465 |
Typical Operating Supply Voltage (V) | 3.3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Maximum Supply Current (mA) | 196 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.15(Max) mm |
Package Width | 5.1(Max) mm |
Package Length | 7.1(Max) mm |
PCB changed | 6 |
Supplier Package | QFM |
Pin Count | 6 |
* LMK61A2-100M00SIAT's Datasheet
Applications
The LMK61A2-100M00SIAT oscillator is versatile for multiple electronics applications. It is commonly used in:
· High-speed data communication systems.
· Industrial automation and control equipment.
· Networking devices that require precise clocking.
· Test and measurement instruments.
· Embedded systems where space efficiency and reliability are critical.
LMK61A2-100M00SIAT's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI LMK61A2-100M00SIAT oscillator combines precision, industrial-grade reliability, and compact design in a single 100MHz LVDS package. Whether you are designing communication devices, industrial systems, or embedded electronics, this oscillator ensures accurate timing and stable performance under demanding conditions. Choosing TI oscillators means choosing quality, innovation, and trusted performance.
