TYN1012TRG: Features, Specs & More
In the world of power electronics, selecting a reliable Silicon Controlled Rectifier (SCR) is crucial for efficient circuit design. The STMicroelectronics TYN1012TRG is a robust SCR that delivers high performance in industrial and electronic applications. In this comprehensive article, we'll delve into the intricacies of the TYN1012TRG, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TYN1012TRG's Overview

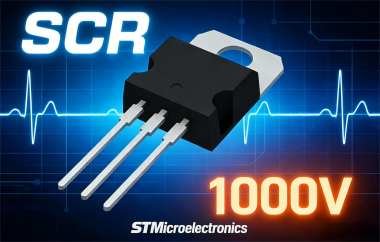

The TYN1012TRG is a 3-pin, 3+Tab SCR produced by STMicroelectronics. It is designed to control AC and DC loads with precision. SCRs like the TYN1012TRG act as controlled switches, allowing current to flow when triggered by a gate signal. They are widely used in industrial and consumer electronics for controlling high-power circuits efficiently.
Key Features
Let's delve into the standout features that make the TYN1012TRG a standout in the world of electronics:
· The SCR supports a repetitive peak reverse voltage of 1000V, ensuring high voltage tolerance.
· It can handle an RMS on-state current of 12A, making it suitable for medium-power applications.
· The device offers a surge current rating of 145A, providing robustness during transient conditions.
· The maximum gate trigger voltage is 1.3V, which allows precise and reliable triggering.
· It has a maximum gate trigger current of 5mA, reducing gate drive requirements.
· The peak on-state voltage is 1.6V at 24A, ensuring efficient conduction.
· The SCR supports a wide operating temperature range from -40°C to 125°C, suitable for industrial environments.
· It is packaged in TO-220AB, facilitating through-hole mounting and effective heat management.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TYN1012TRG:
Applications
The TYN1012TRG is ideal for a variety of industrial and electronic applications:
· AC and DC power control in industrial machinery.
· Phase-controlled switching in motor drives.
· Switching and protection in power supplies.
· High-voltage rectification circuits.
· Household appliances and lighting controls requiring precise SCR operation.
TYN1012TRG's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in eneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics TYN1012TRG is a robust, high-performance SCR suitable for industrial applications. Its high surge rating, wide voltage range, and reliable switching capabilities make it an ideal choice for engineers designing power electronics systems. Choosing TYN1012TRG ensures efficiency, stability, and long-term durability in demanding electronic environments.
