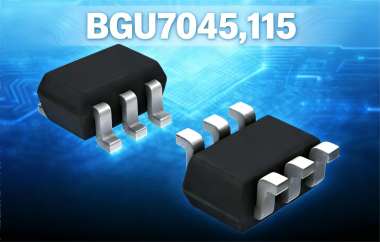

BGU7045,115: Features, Specs & More
In modern RF electronics, choosing the right amplifier is crucial for optimizing signal performance and maintaining system efficiency. The BGU7045,115, developed by Freescale Semiconductor, now NXP Semiconductors, is a single-channel RF MMIC amplifier that excels in low-noise, high-gain applications up to 1GHz. In this comprehensive article, we'll delve into the intricacies of the BGU7045,115, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
BGU7045,115's Overview
The BGU7045,115 is a monolithic microwave integrated circuit (MMIC) amplifier designed to boost RF signals efficiently. It operates on a single supply voltage of 3.3V and supports a frequency range up to 1GHz. This amplifier is engineered to provide high linearity, low noise, and consistent gain performance, making it suitable for both low-power and wideband applications.
Key Features
Let's delve into the standout features that make the BGU7045,115 a standout in the world of electronics:
· The BGU7045,115 operates at a maximum frequency of 1GHz.
· It delivers a typical power gain of 14dB at 1000MHz.
· The amplifier achieves a typical output power of 13dBm at 1000MHz.
· It has a typical output intercept point of 29dBm at 1000MHz.
· The noise figure is 2.8dB at 1000MHz, ensuring low signal degradation.
· Maximum input return loss reaches 20dB, which enhances signal matching.
· Maximum output return loss is 12dB, providing efficient power transfer.
· The supply voltage operates between 3.1V and 3.5V, with a typical value of 3.3V.
· Maximum supply current is 38mA at 3.3V, supporting low-power designs.
· The amplifier can dissipate up to 250mW of power.
· Operating temperature ranges from -40°C to 85°C, allowing robust performance.
· Its 6-pin TSSOP package supports easy surface-mount installation.
· The compact dimensions are 2.2mm length, 1.35mm width, and 1mm height
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the BGU7045,115:
Type | Parameter |
Manufacturer Type | MMIC Amplifier |
Number of Channels per Chip | 1 |
Maximum Operating Frequency (MHz) | 1000 |
Typical Gain Flatness (dB) | 0.2 |
Typical Power Gain (dB) | 14@1000MHz |
Typical Output Power (dBm) | 13@1000MHz |
Typical Output Intercept Point (dBm) | 29@1000MHz |
Maximum Input Return Loss (dB) | 20(Typ)@1000MHz |
Maximum Output Return Loss (dB) | 12(Typ)@1000MHz |
Typical Noise Figure (dB) | 2.8@1000MHz |
Maximum Operating Supply Voltage (V) | 3.5 |
Minimum Single Supply Voltage (V) | 3.1 |
Typical Single Supply Voltage (V) | 3.3 |
Maximum Supply Current (mA) | 38@3.3V |
Power Supply Type | Single |
Maximum Power Dissipation (mW) | 250 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1(Max) mm |
Package Width | 1.35(Max) mm |
Package Length | 2.2(Max) mm |
PCB changed | 6 |
Standard Package Name | SO |
Supplier Package | TSSOP |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The BGU7045,115 is suitable for:
· RF signal amplification in wireless communication systems.
· Low-voltage transceiver modules for IoT devices.
· Pre-amplifiers in RF front-end circuits.
· Small form-factor devices requiring compact surface-mount components.
· Test and measurement equipment in laboratories and field applications.
BGU7045,115's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The BGU7045,115 MMIC amplifier combines high gain, low noise, and compact design to provide a reliable solution for RF amplification. Its low-voltage operation and wide temperature range make it versatile for multiple applications. Engineers seeking a robust and efficient single-channel RF amplifier will find the BGU7045,115 an excellent choice.
