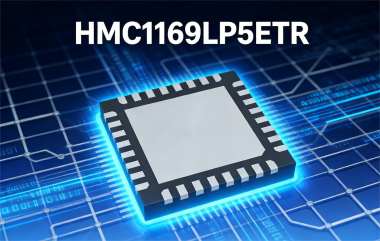

HMC1169LP5ETR: Features, Specs & More
The ADI HMC1169LP5ETR is a high-frequency voltage-controlled oscillator designed for demanding RF and microwave systems that require wide tuning range, stable performance, and compact integration. It targets applications operating in the C-band and Ku-band, where low phase noise and frequency agility are critical. In this comprehensive article, we'll delve into the intricacies of the HMC1169LP5ETR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
HMC1169LP5ETR's Overview
The HMC1169LP5ETR is a monolithic voltage controlled oscillator manufactured by Analog Devices. The device generates tunable RF signals across two distinct frequency bands. The oscillator operates from a single 5 V supply. The component is optimized for low phase noise performance. The package supports automated assembly for high-volume production.
Key Features
Let's delve into the standout features that make the HMC1169LP5ETR a standout in the world of electronics:
· The VCO supports a lower frequency range of 6460–7035 MHz.
· It also covers a higher frequency range of 12920–14070 MHz.
· Typical phase noise is -113 dBc/Hz at 100 kHz offset, ensuring signal stability.
· It operates with a maximum supply voltage of 5.5V.
· The device features a tuning voltage range of 2–13V.
· Maximum supply current is 260 mA, providing efficient power usage.
· Operating temperature ranges from -40°C to 85°C for industrial reliability.
· The package height is 0.88 mm, width and length are 5 mm each, suitable for compact PCBs.
· It uses a 32-pin LFCSP EP package with no-lead configuration for surface mounting.
· Packaging comes as tape and reel, optimized for automated assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the HMC1169LP5ETR:
Type | Parameter |
Type | VCO |
Lower Frequency (MHz) | 6460|12920 |
Upper Frequency (MHz) | 7035|14070 |
Output Frequency (MHz) | 6460 to 7035|12920 to 14070 |
Frequency Range (MHz) | 6460 to 7035|12920 to 14070 |
Typical Phase Noise (dBc/Hz) | -113@100KHz |
Maximum Operating Supply Voltage (V) | 5.5 |
Tuning Voltage (V) | 2 to 13 |
Maximum Supply Current (mA) | 260 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.88 |
Package Width | 5 |
Package Length | 5 |
PCB changed | 32 |
Standard Package Name | CSP |
Supplier Package | LFCSP EP |
Pin Count | 32 |
Lead Shape | No Lead |
Applications
The ADI HMC1169LP5ETR is suited for high-frequency RF applications. It is commonly used in:
· Radar systems for signal generation and detection.
· Telecommunication equipment including base stations and repeaters.
· Test and measurement instruments for precise frequency output.
· Frequency synthesizers for communication and signal processing.
· Military and aerospace electronics where reliability in harsh environments is critical.
HMC1169LP5ETR's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI HMC1169LP5ETR is a robust wideband VCO designed for engineers working on advanced RF and microwave systems. It combines wide tuning range, low phase noise, and industrial-grade reliability in a compact surface-mount package. Its dual-band frequency capability enables flexible system designs while maintaining signal integrity. For applications requiring stable, high-frequency signal generation, the HMC1169LP5ETR remains a practical and performance-oriented choice.
