PMBFJ175,215: Features, Specs & More
Freescale Semiconductor, now part of NXP Semiconductors, has long been recognized for its high-quality semiconductors designed for reliability and performance. Among its robust portfolio, the PMBFJ175,215 stands out as a versatile P-Channel Junction Field-Effect Transistor (JFET) suited for various electronics applications. In this comprehensive article, we'll delve into the intricacies of the PMBFJ175,215, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PMBFJ175,215's Overview

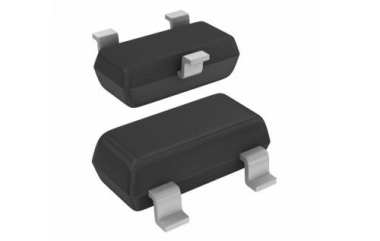

The PMBFJ175,215 is a P-Channel silicon (Si) JFET with a single-channel configuration. It features a maximum drain-source voltage of 30V and is built to operate in extreme temperature conditions ranging from -65°C to 150°C. Its compact 3-pin TO-236AB package makes it suitable for surface-mount applications on printed circuit boards.
Key Features
Let's delve into the standout features that make the PMBFJ175,215 a standout in the world of electronics:
· It is made from high-quality silicon material.
· The transistor has a single-channel configuration.
· It can handle a maximum drain-source voltage of 30V.
· The maximum gate-source voltage is also 30V.
· It supports a maximum power dissipation of 300 mW.
· It operates in extreme temperatures from -65°C to 150°C.
· The package type is surface mount for easy PCB integration.
· Its dimensions are 3 mm in length, 1.4 mm in width, and 1 mm in height.
· The device comes in a TO-236AB standard package.
· It features a three-pin configuration for compact designs.
· Gull-wing lead shape ensures reliable soldering and mechanical stability.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PMBFJ175,215:
Type | Parameter |
Material | Si |
Channel Type | P |
Configuration | Single |
Maximum Drain Source Voltage (V) | 30 |
Maximum Gate Source Voltage (V) | 30 |
Maximum Power Dissipation (mW) | 300 |
Minimum Operating Temperature (°C) | -65 |
Maximum Operating Temperature (°C) | 150 |
Mounting | Surface Mount |
Package Height | 1(Max) mm |
Package Width | 1.4(Max) mm |
Package Length | 3(Max) mm |
PCB changed | 3 |
Standard Package Name | TO |
Supplier Package | TO-236AB |
Pin Count | 3 |
Lead Shape | Gull-wing |
Applications
The PMBFJ175,215 is suitable for various electronics applications, including:
· Low-noise signal amplification circuits.
· High-precision analog switches in industrial designs.
· Switching circuits in portable devices.
· Sensor interface circuits requiring stable P-channel transistors.
· Experimental electronics projects and DIY PCB designs.
PMBFJ175,215's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The PMBFJ175,215 P-Channel JFET from NXP is a high-performance, versatile, and compact transistor suitable for a wide range of analog and switching applications. Its robust specifications, wide temperature tolerance, and surface-mount design make it an ideal choice for engineers seeking reliability and precision in modern electronics. For anyone working in industrial electronics, analog circuitry, or compact PCB designs, this transistor delivers proven performance.
