EEH-ZA1V271P: Features, Specs & More

In modern electronic systems, capacitor selection directly affects efficiency, thermal stability, and long-term reliability. The Panasonic EEH-ZA1V271P is a polymer hybrid aluminum capacitor designed to meet the increasing demands of automotive and industrial power circuits. With low ESR, extended lifetime, and surface-mount compatibility, this component is engineered for high-performance environments where electrical stability is non-negotiable. In this comprehensive article, we'll delve into the intricacies of the EEH-ZA1V271P, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.

Catalog

EEH-ZA1V271P's Overview

Key Features

Specifications

Applications

EEH-ZA1V271P's Manufacturer

Conclusion

EEH-ZA1V271P's Overview

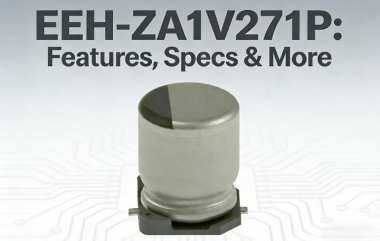

The Panasonic EEH-ZA1V271P is a surface-mount aluminum polymer hybrid capacitor with a rated capacitance of 270µF and a 35V DC operating voltage. It is a polarized component designed to deliver low equivalent series resistance and stable electrical performance across a wide temperature range. The capacitor is optimized for ripple current handling and long operational life in harsh environments.

Key Features

Let's delve into the standout features that make the EEH-ZA1V271P a standout in the world of electronics:

· The capacitor has a capacitance value of 270uF, suitable for energy storage and filtering applications.

· It operates at a voltage of 35VDC, supporting medium-voltage circuits.

· The device exhibits a low ESR of 0.02 Ohms, minimizing heat generation during high-current operation.

· It is a polarized component, ensuring correct orientation during installation.

· With a lifetime of 10,000 hours, it is engineered for long-term reliability.

· It functions efficiently across a wide temperature range from -55°C to 105°C.

· The component features a cylindrical construction with a compact 10 x 10.2mm size.

· Designed for surface-mount applications, it simplifies PCB assembly in automated production.

· The capacitor is supplied in tape and reel packaging for high-volume manufacturing.

· It can handle an IR of 2.5mA and an IL of 94.5μA over 2 minutes, making it suitable for automotive current requirements.

Specifications

Now, let's take a closer look at the technical specifications that define the capabilities of the EEH-ZA1V271P:

 * EEH-ZA1V271P's Datasheet

Applications

The EEH-ZA1V271P is commonly used in:

· Automotive power control units

· DC-DC converters

· On-board chargers

· Industrial power supplies

· Motor drive circuits

· Infotainment and ADAS modules

Its wide temperature range and long endurance make it especially suitable for under-hood and mission-critical electronics.

EEH-ZA1V271P's Manufacturer

Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.

Conclusion

The Panasonic EEH-ZA1V271P is a robust polymer hybrid capacitor engineered for demanding power applications. Its low ESR, high ripple capability, and 10000-hour lifespan make it a reliable choice for automotive and industrial electronics. For designers seeking long-term stability in compact surface-mount form factors, this component delivers a strong balance of performance, endurance, and manufacturability.
