USB2514BI-AEZG: Features, Specs & More

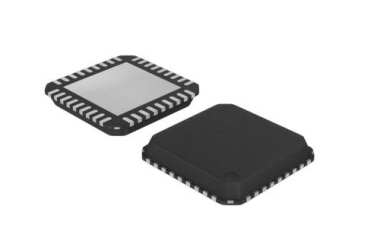

The Microchip USB2514BI-AEZG is a USB 2.0 hub controller designed for versatile electronics applications. It supports low speed, full speed, and high speed USB communications. This device operates reliably in industrial temperature ranges. In this comprehensive article, we'll delve into the intricacies of the USB2514BI-AEZG, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
USB2514BI-AEZG's Overview
The USB2514BI-AEZG is a USB hub controller manufactured by Microchip Technology. It integrates a USB transceiver and supports USB 2.0 protocols, enabling seamless communication between a host system and multiple USB devices. This component is designed to provide robust performance, high reliability, and efficient power management for connected peripherals.
Key Features
Let's delve into the standout features that make the USB2514BI-AEZG a standout in the world of electronics:
· The USB2514BI-AEZG supports low, full, and high-speed USB communication.
· It includes an integrated USB transceiver for seamless data management.
· The hub controller operates at a maximum frequency of 24 MHz.
· It is compatible with USB 2.0 protocols, ensuring wide device support.
· The device uses a serial interface type for simplified PCB routing.
· It operates reliably across a 3V to 3.6V supply voltage range.
· Typical current consumption is around 45 mA, optimizing power efficiency.
· The controller supports industrial temperature ranges from -40°C to 85°C.
· It comes in a 36-pin VQFN EP tray package, ideal for surface mount assembly.
· The compact 6x6 mm footprint enables integration into dense circuit designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the USB2514BI-AEZG:
Type | Parameter |
Type | Hub Controller |
USB Transceiver | Yes |
USB Speed Type | Low Speed|Full Speed|High Speed |
Maximum Operating Frequency (MHz) | 24 |
Protocols Supported | USB 2.0 |
Interface Type | Serial |
Minimum Operating Supply Voltage (V) | 3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Typical Operating Supply Voltage (V) | 3.3 |
Typical Supply Current (mA) | 45 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 6 |
Package Length | 6 |
PCB changed | 36 |
Standard Package Name | QFN |
Supplier Package | VQFN EP |
Pin Count | 36 |
Lead Shape | No Lead |
Applications
The USB2514BI-AEZG is widely used in applications that require reliable USB connectivity and hub functionality:
· Industrial control systems
· Embedded computing platforms
· Consumer electronics devices such as keyboards, mice, and game controllers
· Medical devices requiring robust USB communication
· Networking equipment and USB docking stations
USB2514BI-AEZG's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Microchip USB2514BI-AEZG is a compact and robust USB 2.0 hub controller. It delivers reliable high-speed communication for multiple USB devices. Its industrial-grade specifications make it suitable for a wide range of electronics applications. Engineers can integrate it into designs requiring efficient USB expansion. The device's low power consumption and broad temperature range enhance performance. The USB2514BI-AEZG remains a trusted choice for professional USB connectivity solutions.
