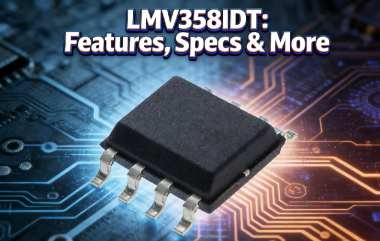

LMV358IDT: Features, Specs & More
As electronic systems continue to shift toward lower supply voltages and higher integration, operational amplifiers must deliver stable analog performance under tighter power constraints. The STMicroelectronics LMV358IDT is designed specifically for these conditions, combining dual-channel integration with rail-to-rail input and output capability in a compact surface-mount package. In this comprehensive article, we'll delve into the intricacies of the LMV358IDT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LMV358IDT's Overview
The LMV358IDT is a dual-channel low-voltage operational amplifier with rail-to-rail input and output capability. It operates from a single power supply and supports analog signal amplification at voltages as low as 2.7 V. The device is optimized for general-purpose analog functions rather than high-speed or precision instrumentation roles.
Key Features
Let's delve into the standout features that make the LMV358IDT a standout in the world of electronics:
· The LMV358IDT operates with rail-to-rail input and output capability.
· The device supports single-supply operation from 2.7 V to 6 V.
· The amplifier integrates two independent channels on one chip.
· The typical quiescent current is optimized for low-power designs.
· The device provides stable performance across an extended temperature range.
· The output stage delivers high current drive capability for its class.
· The amplifier is packaged for automated surface-mount assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LMV358IDT:
Type | Parameter |
Type | Low Voltage Amplifier |
Manufacturer Type | Low Voltage Amplifier |
Number of Channels per Chip | 2 |
Rail to Rail | Rail to Rail Input/Output |
Maximum Input Offset Voltage (mV) | 3@5V |
Minimum Single Supply Voltage (V) | 2.7 |
Maximum Single Supply Voltage (V) | 6 |
Maximum Input Offset Current (uA) | 0.009@5V |
Maximum Input Bias Current (uA) | 0.063@5V |
Maximum Quiescent Current (mA) | 0.44@5V |
Typical Output Current (mA) | 48@5V |
Power Supply Type | Single |
Typical Slew Rate (V/us) | 0.45@5V |
Typical Input Noise Voltage Density (nV/rtHz) | 40@5V |
Typical Voltage Gain (dB) | 97 |
Minimum CMRR (dB) | 65 |
Minimum CMRR Range (dB) | 65 to 70 |
Typical Gain Bandwidth Product (MHz) | 1.3 |
Shut Down Support | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.65(Max) |
Package Width | 4(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SO N |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The LMV358IDT is well suited for battery-powered electronics where low supply voltage operation is critical. It is commonly used in signal conditioning circuits, sensor interfaces, and voltage follower designs. Engineers also deploy it in portable medical devices, consumer audio circuits, and industrial monitoring systems that require reliable analog amplification without excessive power consumption.
LMV358IDT's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in eneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics LMV358IDT is a dependable dual operational amplifier for low-voltage analog designs. Its rail-to-rail I/O capability, low power consumption, and wide operating temperature range make it a strong choice for modern electronics. For engineers seeking a balanced combination of efficiency, integration, and analog performance, the LMV358IDT remains a practical and proven solution.
