TS3704IPT: Features, Specs & More
In modern electronic systems, reliable signal comparison is essential for ensuring stability, accuracy, and protection across a wide range of applications. The STMicroelectronics TS3704IPT is a quad voltage comparator designed to meet these needs with low power consumption, wide supply voltage support, and robust performance across industrial temperature ranges. In this comprehensive article, we'll delve into the intricacies of the TS3704IPT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TS3704IPT's Overview

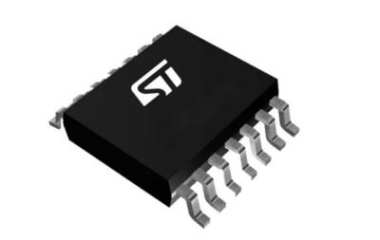

The TS3704IPT is a quad voltage comparator produced by STMicroelectronics. It integrates four independent comparator channels in a single 14-pin TSSOP surface-mount package. Comparators like the TS3704IPT are essential in circuits where analog signals need to be compared and converted into digital outputs, forming the backbone of signal monitoring, switching, and threshold detection systems.
Key Features
Let's delve into the standout features that make the TS3704IPT a standout in the world of electronics:
· The TS3704IPT integrates four independent voltage comparators in one package.
· It supports single-supply operation from 2.7 V to 16 V.
· It supports dual-supply operation up to ±8 V.
· The device delivers a typical response time of 2 microseconds.
· The output stage uses a push-pull architecture for direct logic interfacing.
· The typical common-mode rejection ratio reaches 80 dB.
· The typical power supply rejection ratio reaches 92 dB.
· The device maintains very low input bias current at typical operating conditions.
· It is specified for operation from −40 °C to +125 °C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TS3704IPT:
Type | Parameter |
Manufacturer Type | Voltage Comparator |
Number of Channels per Chip | 4 |
Rail to Rail | No |
Typical CMRR (dB) | 80 |
Typical PSRR (dB) | 92 |
Typical Response Time (us) | 2 |
Typical Response Time Range (us) | 0.5 to 5 |
Output Type | Push-Pull |
Maximum Operating Supply Voltage (V) | ±8|16 |
Maximum Input Offset Voltage (mV) | 5@10V |
Minimum Single Supply Voltage (V) | 2.7 |
Maximum Single Supply Voltage (V) | 16 |
Maximum Dual Supply Voltage (V) | ±8 |
Maximum Input Bias Current (uA) | 0.000001(Typ)@5V |
Typical Output Current (mA) | 20(Max) |
Maximum Quiescent Current (mA) | 0.08@5V |
Maximum Power Dissipation (mW) | 710 |
Power Supply Type | Single|Dual |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1 |
Package Width | 4.4 |
Package Length | 5 |
PCB changed | 14 |
Standard Package Name | SO |
Supplier Package | TSSOP |
Pin Count | 14 |
Lead Shape | Gull-wing |
Applications
The TS3704IPT is widely used in precision analog and digital circuits. Common applications include:
· Overvoltage and undervoltage protection circuits.
· Zero-crossing detectors in AC signal processing.
· Window comparators for sensor monitoring.
· Pulse-width modulation and waveform shaping circuits.
· Battery monitoring and power management systems.
TS3704IPT's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in eneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics TS3704IPT is a versatile quad voltage comparator that combines low power consumption, wide supply voltage support, and solid electrical performance in a compact package. Its ability to operate in harsh temperature environments and support both single and dual supplies makes it a reliable choice for industrial and embedded applications. For designers seeking a dependable multi-channel comparator with proven characteristics, the TS3704IPT remains a practical and efficient solution.
